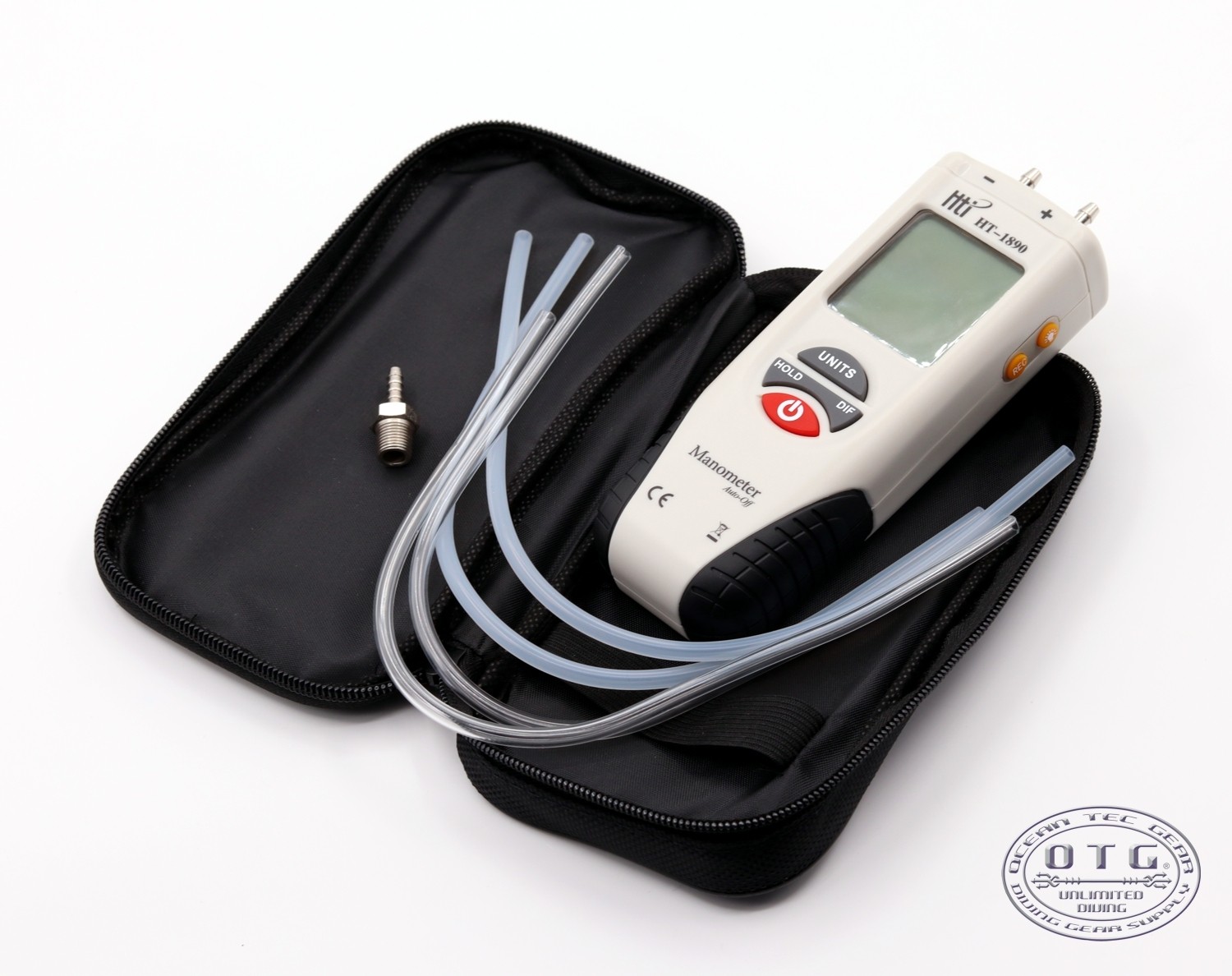

OTG Scuba Diving Digital Differential Pressure Gauge #OG-240

OTG Scuba Diving Digital Differential Pressure Gauge #OG-240
US $61.59

Availability: In stock

OTG Scuba Diving Digital Differential Pressure Gauge is for divers to check and setup the cracking effort (inhalation effort) of the 2nd stages regulator. The measure range is from -55.40 inH2O to +55.40 inH2O and the resolution is 0.01 inH2O. Also, this gauge have totally 11 units which can be select such as inH2O, psi, bar, mbar, kpa, inHg, mmhg, ozin, ftH2O, cmH2O etc... It is an easy operation and clear reading gauge for every technician.

OR
Description

Details

- 100% Brand New, OTG Scuba Diving Differential Pressure Gauge #OG-240

- Size of gauge: approx. 16cm x 5.5.cm x 3.5cm (not included the tube)

- Measure units and range:

inH2O from -55.40 to +55.40 with 0.01 resolution

Psi from -2.000 to +2.000 with 0.001 resolution

Mbar from -137.8 to +137.8 with 0.1 resolution

kPa from -13.79 to +13.79 with 0.01 resolution

inHg from -4.072 to +4.072 with 0.001 resolution

mmHg from -103.4 to +103.4 with 0.1 resolution

Ozin2 from -32.00 to +32.00 with 0.01 resolution

ftH2O from -4.612 to +4.612 with 0.001 resolution

cmH2O from -140.6 to +140.6 with 0.1 resolution

Kgcm2 from -0.140 to +0.140 with 0.001 resolution

Bar from -0.137 to +0.137 with 0.001 resolution

- Accuracy: +/- 0.3% FSO (25°C)

- Repeatability: +/- 0.2% (Max +/-0.5%FSO)

- Linearity/Hysteresis: +/- 0.29% FSO

- Maximum pressure: 10psi

- Response time: 0.5 second

- Low battery indicator: Yes

- Back light: Yes

- Over range indicator: Err.1 (shown)

- Under range indicator: Err.2 (shown)

- Operating temp: 0°C to 50°C (32°F to 122°F)

- Storage temp: -1°C to 60°C (14°F to 140°F)

- Power supply: 1 x 9V battery (not included)

- With 2pcs. x PVC tubes and 2pcs. x silicone tubes (length of those tubes is approx. 11 inches)

- With nylon pouch and manual

Package Included:

1 x OTG Scuba Diving Differential Pressure Gauge #OG-240
